DB Technologies VIO W10 Low Profile Stage Monitor

Original price was: $2,999.00.Current price is: $2,399.00.

-20%

The DB Technologies VIO W10 low profile stage monitor features exclusive anti-feedback acoustic configuration with 4×4″ neodymium HF speakers. This active line array wedge includes 400W Digipro G3 amplification, four adjustable acoustic focus presets, and Aurora Net compatibility. RDNet networking enables complete remote control for professional worship and touring applications. Order today!

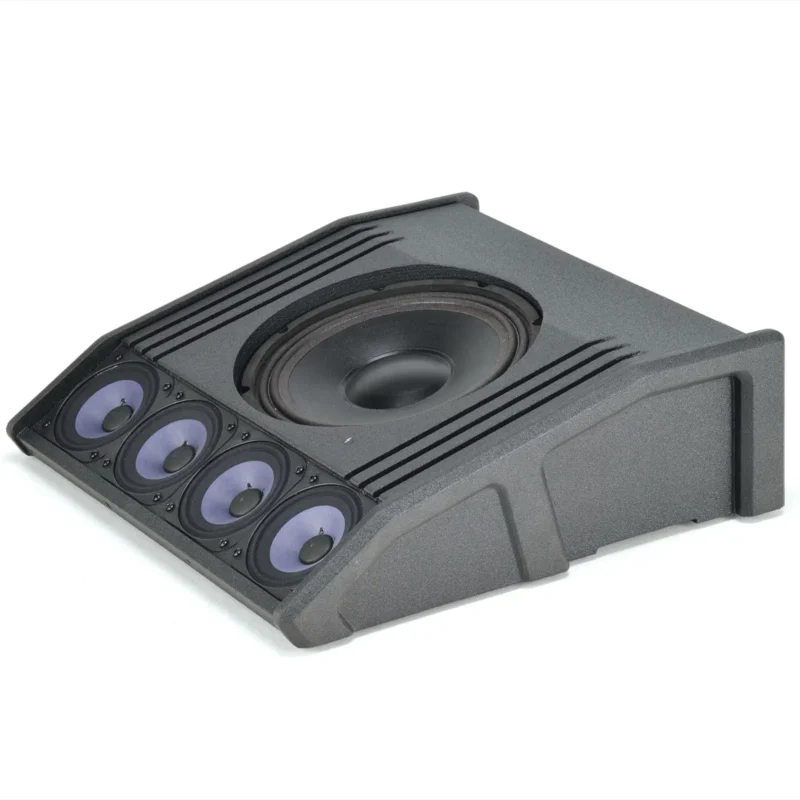

dB tecnologies VI0-W10-Stage Monitor side
DB Technologies VIO W10 Low Profile Stage Monitor
$2,999.00 Original price was: $2,999.00.$2,399.00Current price is: $2,399.00.

Anti-Feedback Acoustic Configuration for Clear Stage Sound

The DB Technologies VIO W10 low-profile stage monitor features an exclusive anti-feedback acoustic design with 4×4″ neodymium HF speakers and a 10″ neodymium woofer. Musicians consistently report hearing themselves clearly without microphone feedback issues during live performances. Moreover, the 400W RMS Digipro G3 amplifier delivers clean power that maintains clarity even during high-volume worship services or concerts.

Four Adjustable Acoustic Focus Presets for Every Application

Unlike fixed-pattern monitors that force you to adapt your stage setup, the VIO W10 adapts to your needs with digital sound processing. Users can select from four onboard presets: default, close narrow, close wide, and far. Therefore, worship leaders positioned near the monitor get different coverage than drummers sitting further back. Additionally, the rotary encoder makes switching between presets quick and intuitive during soundcheck.

Aurora Net and RDNet Control for Modern Worship Systems

This active line array monitor integrates seamlessly with Aurora Net software and RDNet networking for complete remote control. Sound engineers appreciate monitoring levels, limiters, and temperatures from front-of-house positions rather than running on stage. Furthermore, the USB data port allows firmware updates to keep your investment current. Churches using multiple VIO W10 monitors can group them together and apply EQ, delay, and phase adjustments simultaneously.

Professional Cabinet Design with Practical Details

The wooden cabinet features polyurea painting that withstands constant setup and teardown cycles better than standard finishes. More importantly, DB Technologies included thoughtful features like an integrated side handle for single-person transport. Also, a special groove carved into the bottom allows cables to pass underneath cleanly, eliminating cable clutter that trips musicians during worship sets. The front-rear grille design looks professional while protecting drivers from accidental damage.

Flexible Connectivity for Complex Stage Configurations

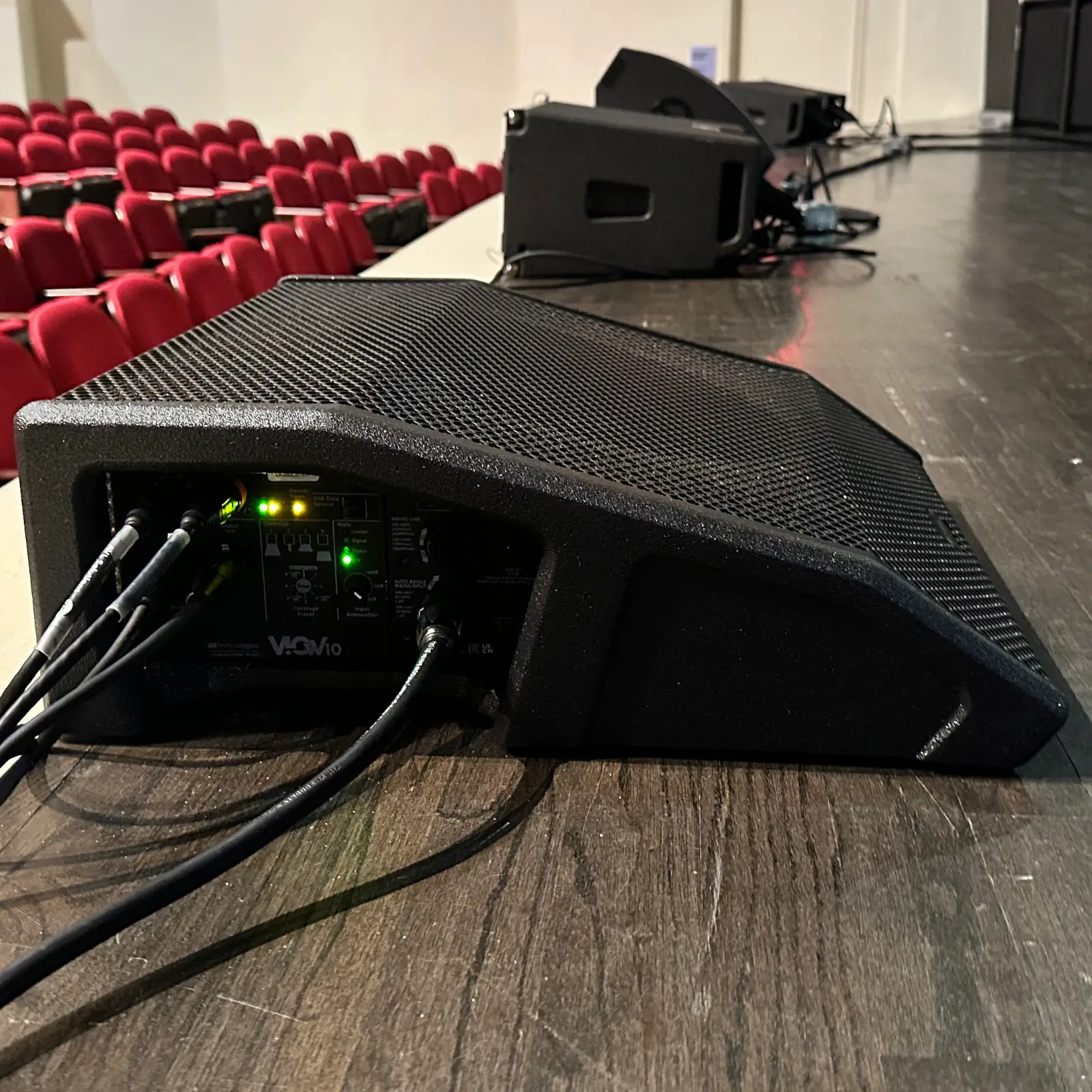

Input flexibility includes XLR female, RJ45 RDNet link, and mic/line switching to accommodate various source levels. Consequently, you can connect wireless microphone receivers, in-ear monitor mixers, or console outputs without additional adapters. The XLR output and PowerCON TRUE1 connections allow daisy-chaining multiple monitors across the stage. Sound engineers value the signal LED, limiter LED, and status LED that provide instant visual feedback during performances.

What’s Included in the Box?

  • DB Technologies VIO W10 active stage monitor
  • PowerCON TRUE1 power cable
  • User manual with complete specifications and setup instructions
  • Warranty registration information

Key Features

  • Exclusive anti-feedback acoustic configuration eliminates feedback issues during live performances and worship services
  • 4×4″ neodymium high-frequency speakers with 2.5″ voice coils deliver exceptional clarity and vocal intelligibility
  • 10″ neodymium woofer with 2.5″ voice coil provides powerful low-frequency response down to 68 Hz
  • 400W RMS Digipro G3 Class-D amplifier delivers clean power with low distortion and high efficiency
  • Four onboard acoustic focus presets: default, close narrow, close wide, and far settings for different stage positions
  • Aurora Net software compatibility allows complete remote control of all monitor parameters from front-of-house
  • RDNet networking enables real-time supervision of levels, limiters, temperatures, and component health monitoring
  • Linear Phase FIR filters ensure extremely coherent audio performance with exceptional intelligibility from every position
  • Wooden cabinet with polyurea finish withstands constant setup, teardown cycles, and touring demands
  • Integrated side handle enables single-person transport without straining back or awkward lifting positions
  • Bottom cable groove allows XLR and power cables to pass underneath for clean, trip-free stage appearance
  • Mic/line input switching accommodates various source levels without external preamps or attenuators
  • PowerCON TRUE1 input and output connectors enable daisy-chaining multiple monitors across the stage
  • USB data port allows firmware updates to keep your monitor current with latest features
  • Signal, limiter, and status LEDs provide instant visual feedback during soundcheck and performances

Tech Specs

  • Model: DB Technologies VIO W10
  • Product Code: 103010380
  • Type: 2-way active wedge monitor
  • Amplification: 400W RMS Class-D Digipro G3
  • Maximum SPL: 126 dB
  • Frequency Response (-6dB): 68 – 14,000 Hz
  • High Frequency Driver: 4x 4″ neodymium speakers with 1″ voice coils
  • Low Frequency Driver: 1x 10″ neodymium woofer with 2.5″ voice coil
  • Acoustic Configuration: Exclusive anti-feedback design
  • DSP Processing: Linear Phase FIR filters with variable acoustic focus
  • Onboard Presets: 4 options (default, close narrow, close wide, far)
  • Signal Input: 1x XLR female, 1x RJ45 RDNet Link, 1x USB data service port
  • Signal Output: 1x XLR male, 1x RJ45 RDNet Link
  • Power Connectors: 1x PowerCON TRUE1 input, 1x PowerCON TRUE1 output
  • Controls: Rotary encoder (8 presets), input sensitivity encoder, mic/line switch
  • LED Indicators: Power, status, signal, and limiter LEDs
  • Network Compatibility: Aurora Net and RDNet ready, Dante-ready architecture
  • Cabinet Construction: Wooden cabinet with polyurea painting
  • Handle: 1 integrated handle on left side
  • Cable Management: Bottom groove for clean cable routing

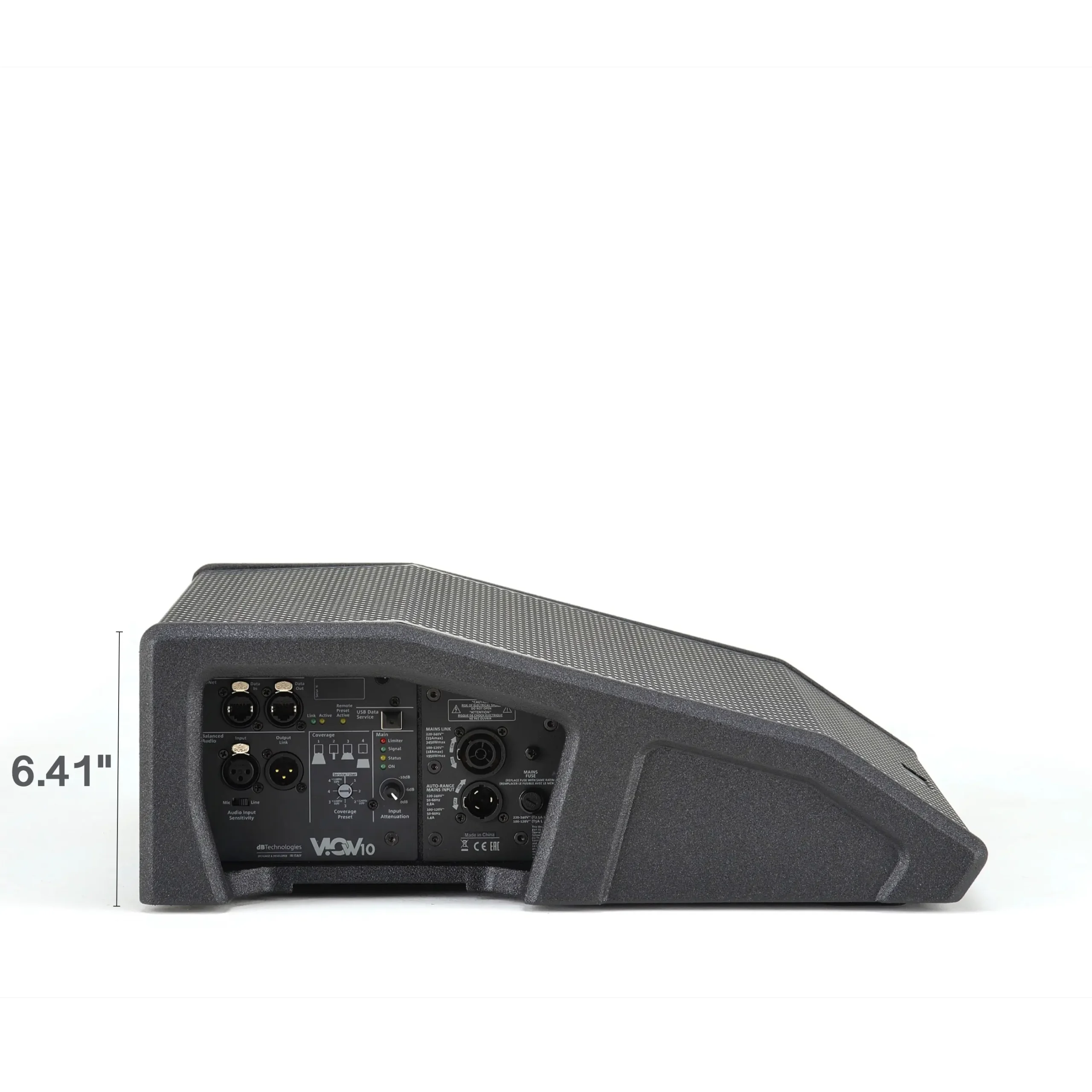

  • Dimensions (W x H x D): 450mm x 165mm x 480mm (17.71″ x 6.49″ x 18.89″)
  • Weight: 13.7 kg (30.20 lbs)
  • Finish: Black polyurea with front-rear grille design
  • Certifications: CE and UKCA certified

FAQ

Frequently Asked Questions

  • What makes the VIO W10’s anti-feedback design different from standard stage monitors? The VIO W10 uses an exclusive acoustic configuration with 4×4″ neodymium HF speakers arranged in an array pattern that minimizes microphone pickup while maximizing coverage to the performer. This prevents feedback even when vocalists lean into microphones during intense worship moments or performances.
  • Can I control the VIO W10 remotely from my mixing console? Yes, the VIO W10 integrates with Aurora Net software and RDNet networking, allowing you to adjust presets, monitor temperatures, control levels, and supervise limiters from your front-of-house position without walking on stage. Multiple monitors can be grouped for simultaneous control.
  • What are the four acoustic focus presets and when should I use each one? The default preset works for most applications. Close narrow focuses sound for performers standing directly in front. Close wide spreads coverage for multiple musicians sharing one monitor. Far extends throw distance for drummers or performers positioned further away. Switch presets using the onboard rotary encoder during soundcheck.
  • How does the VIO W10 compare to powered line array monitors in coverage pattern? The VIO W10 uses powered line array technology with its 4×4″ neodymium HF speaker array, providing more consistent horizontal coverage than single-driver monitors. This means performers hear balanced sound whether standing center or off-axis from the monitor.
  • Can I daisy-chain multiple VIO W10 monitors together? Absolutely! The VIO W10 includes both PowerCON TRUE1 input/output for power daisy-chaining and XLR output plus RJ45 RDNet links for signal distribution. This allows you to create a complete stage monitoring system from a single mixer monitor send and power outlet.
  • What’s the benefit of the Digipro G3 Class-D amplifier in the VIO W10? The Digipro G3 amplifier delivers 400W RMS with exceptional efficiency, low distortion, and minimal heat generation. This means your monitor runs cooler during long worship services or concerts while providing clean power that doesn’t color your vocal tone or instrument sound.
  • Why does the VIO W10 have a groove carved in the bottom? The bottom groove allows XLR and power cables to pass underneath the monitor cabinet cleanly. This prevents cables from creating trip hazards across your stage and maintains a professional appearance during worship services or performances when congregation or audience members have clear sight lines.
  • Is the VIO W10 suitable for outdoor church events or festivals? Yes, the polyurea-painted wooden cabinet withstands weather exposure better than standard finishes, and the neodymium drivers resist demagnetization from temperature fluctuations. However, like all professional audio equipment, the VIO W10 should be protected from direct rain and extreme conditions when possible.
  • Can I update the VIO W10’s firmware to get new features? Yes, the USB data port on the rear panel allows firmware updates using DB Technologies’ firmware installer software. This keeps your monitor current with the latest DSP improvements, preset options, and network protocol updates as DB Technologies releases them.
  • What’s the difference between the mic and line input settings? The mic/line switch adjusts input sensitivity to accommodate different source levels. Use mic setting for wireless microphone receivers or low-output sources. Use line setting for console monitor outputs, digital mixer sends, or other line-level equipment. This eliminates the need for external preamps or attenuators.
SKU: VIOW10 Category:
