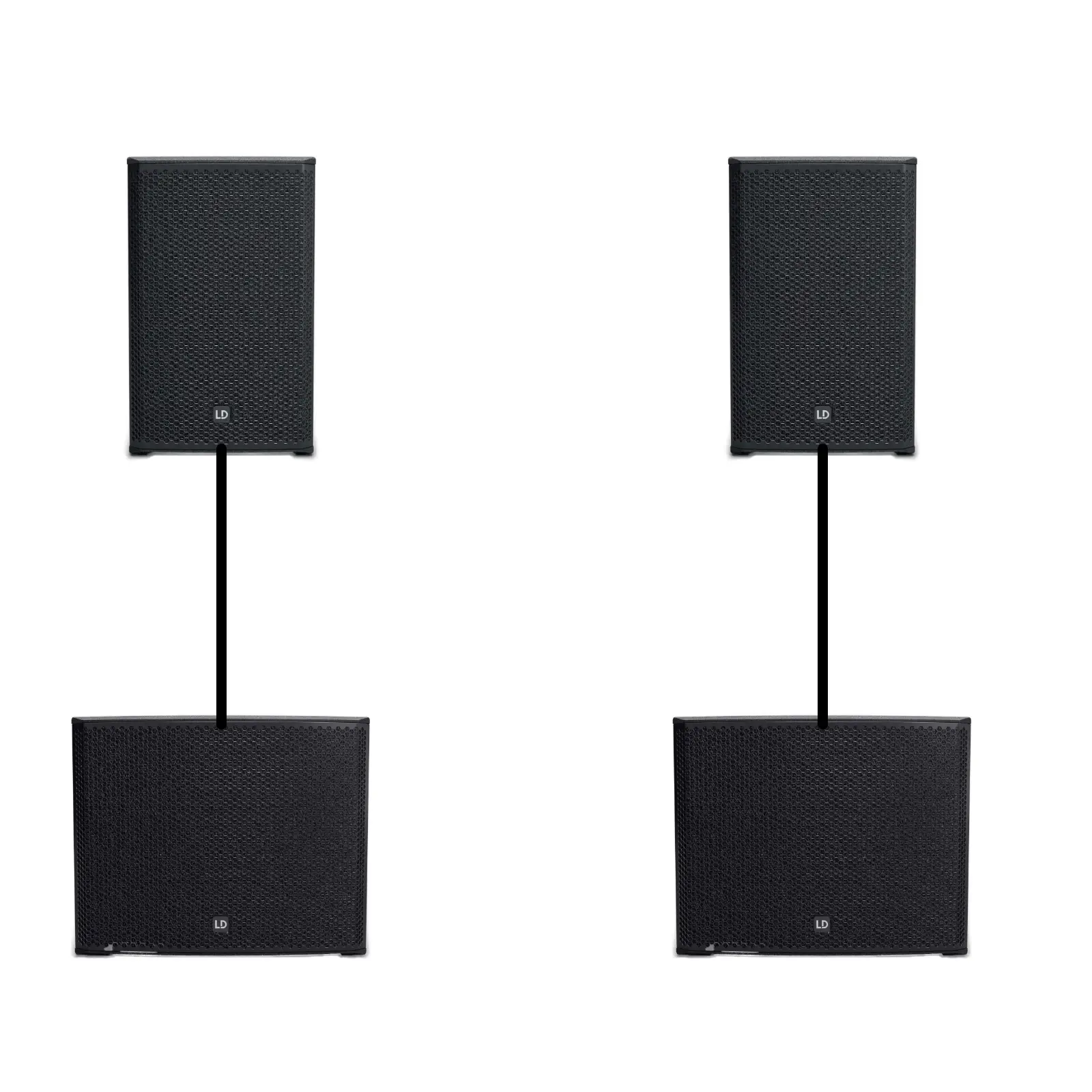

PA system Package From LD Systems Two Stinger 12A G3 + Two Stinger 18a G3

Complete 2600W PA System Package for Professional Events

This PA system package delivers 2600 watts RMS combined power through two Stinger 12A G3 tops and two Stinger SUB 18A G3 subwoofers. Therefore, you get massive 266 dB combined SPL for audiences up to 500 people. LD Systems, established by Adam Hall Group in 2002, built its reputation on German engineering excellence and professional-grade audio solutions. Moreover, this complete sound system bundle includes birch plywood construction with ultra-tough polyurea coating for exceptional durability. Additionally, LD Systems backs each component with a manufacturer’s warranty for peace of mind.

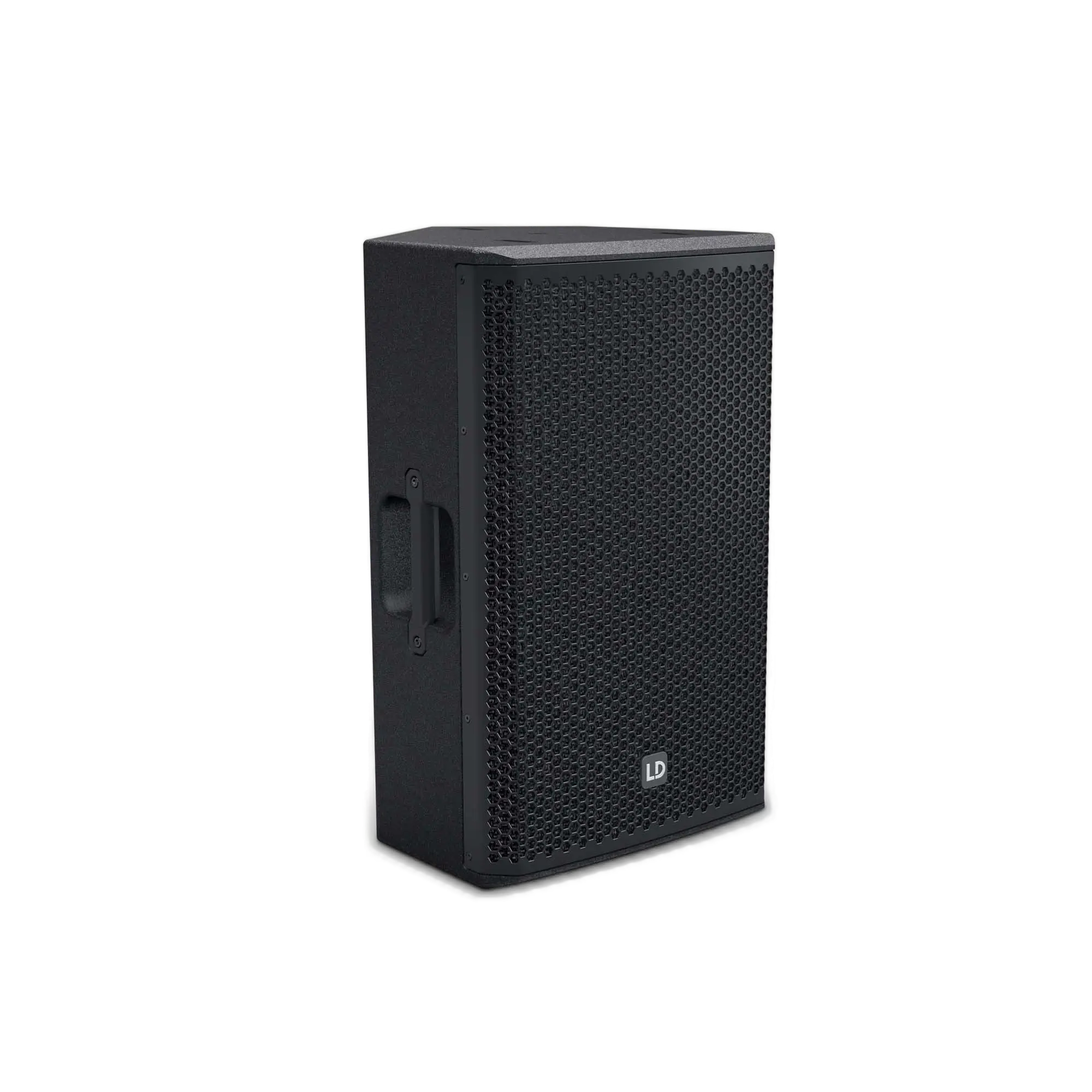

Professional 12-Inch Active Speakers with BEM Technology

The Stinger 12A G3 speakers feature Class-D amplification delivering 500 watts RMS per unit. Furthermore, each speaker combines a custom 12-inch woofer with BMS compression driver for balanced frequency response. Consequently, you experience deep bass down to 58 Hz and crystal-clear highs up to 20 kHz. The BEM-optimized waveguide controls 90° x 50° dispersion pattern, reducing floor and ceiling reflections. Meanwhile, LD’s proprietary DynX DSP technology ensures distortion-free performance even at maximum volume. Additionally, each speaker weighs just 20.1 kg (44 lbs) for easy transportation and setup.

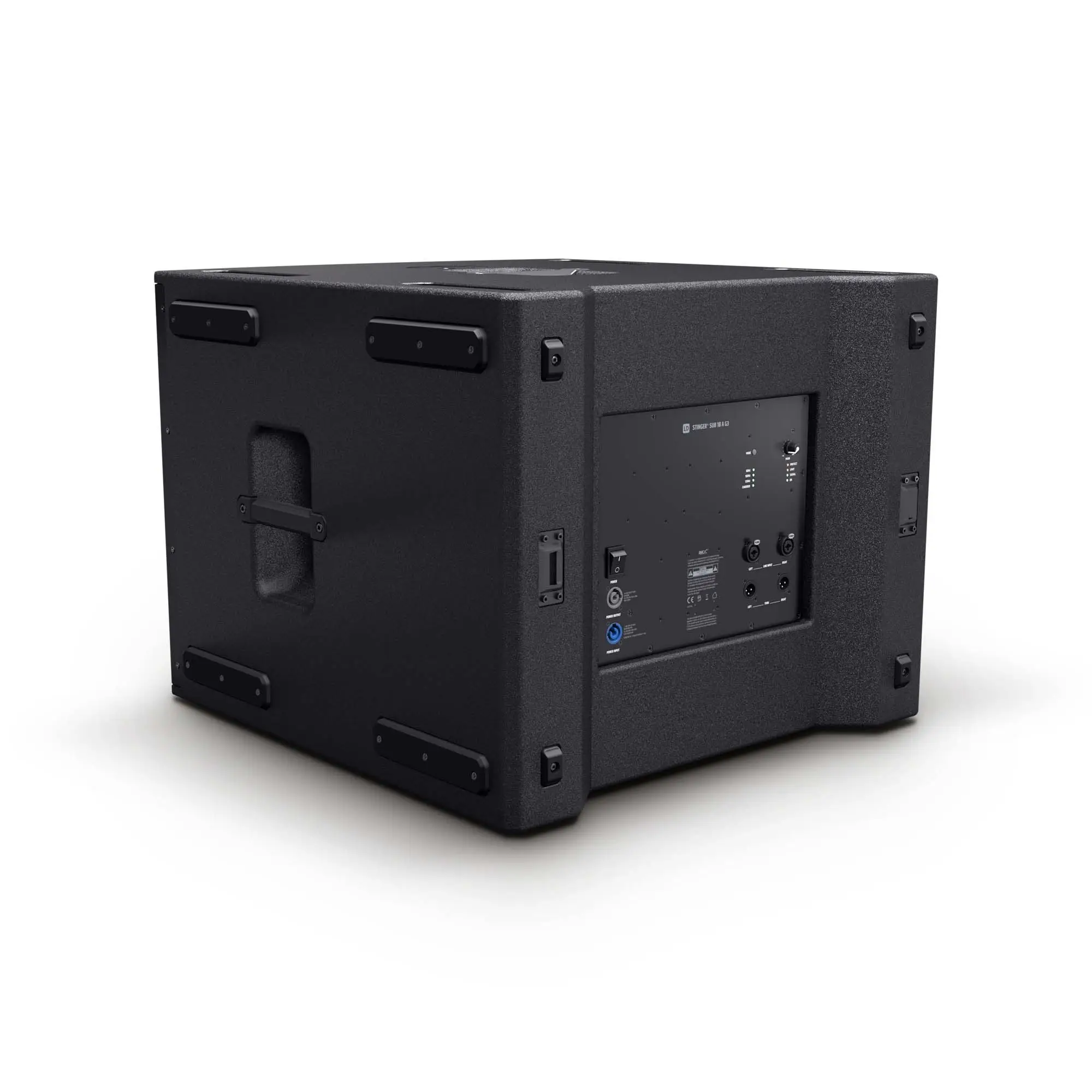

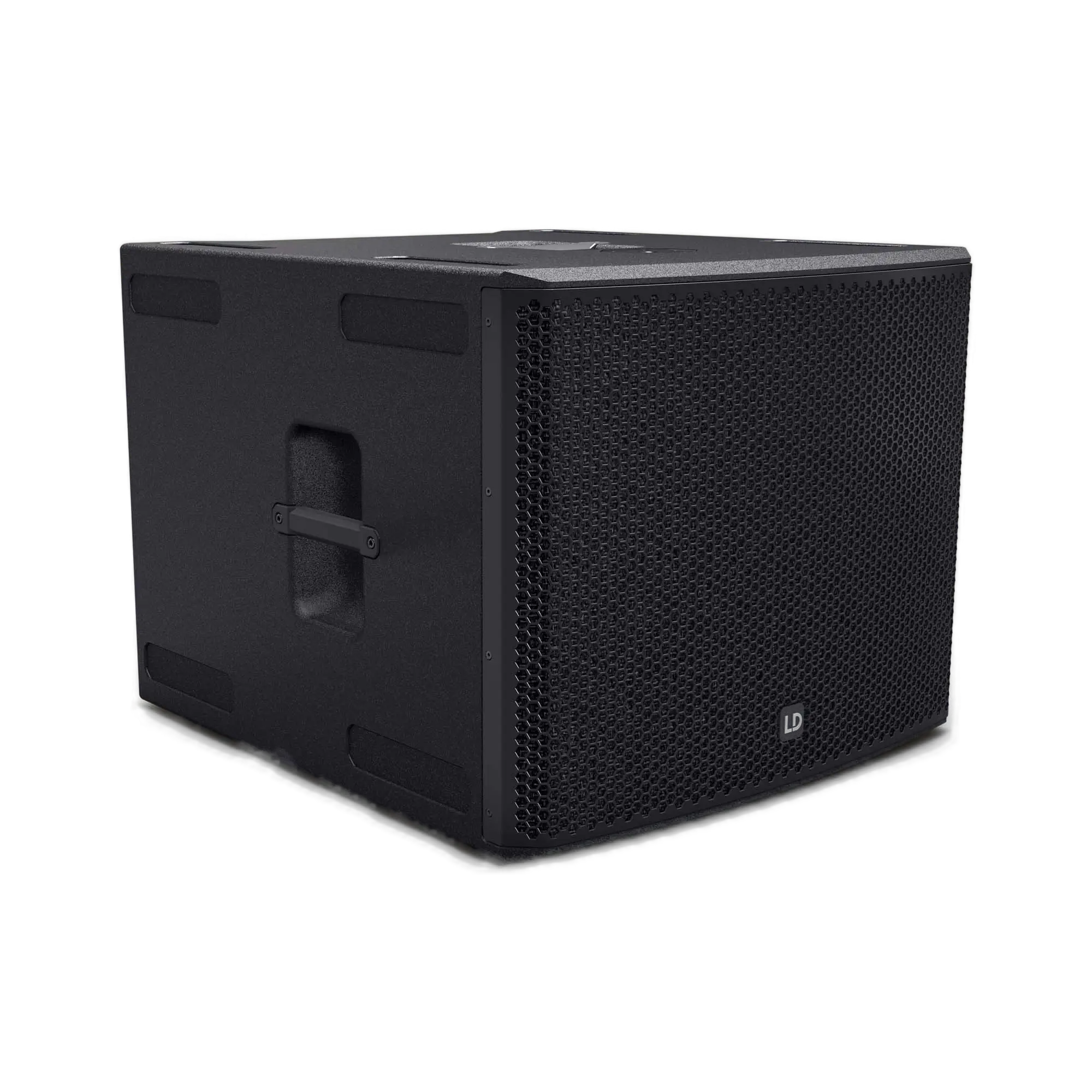

Powerful 18-Inch Subwoofers with Cardioid Array Presets

Each Stinger SUB 18A G3 subwoofer pumps out 800 watts RMS through its custom 18-inch woofer with 4-inch voice coil. Therefore, you get deep, punchy bass down to 35 Hz with 135 dB peak SPL. The robust 18mm birch plywood cabinet works in both horizontal and vertical orientations. Furthermore, built-in cardioid array presets allow directional bass control when using dual subwoofers. Additionally, DSP presets at 80, 100, and 120 Hz simplify system integration with your tops. Each subwoofer includes M20 threaded pole mount, stacking recesses, and ergonomic handles for convenient setup.

Perfect for Your Indoor and Outdoor Events

This professional audio system handles indoor venues up to 300 people and outdoor events for 200-250 guests. Churches benefit from clean, intelligible speech and powerful worship music coverage. Meanwhile, corporate events get crystal-clear presentations with impactful audio. For single subwoofer placement, position it center stage or side-stage for optimal coverage. However, dual subwoofer configurations offer maximum flexibility with cardioid, end-fire, or stacked arrangements. Event production companies appreciate the reliable performance for weddings, concerts, and live music venues. Therefore, this sound system bundle adapts to diverse applications from fixed installations to mobile DJ setups.

Easy Rigging and Transportation for Mobile Applications

Multiple mounting options include standard 36mm pole mounts with dual-tilt positions (0° and 5° angles). Additionally, integrated M10 rigging points enable flown applications for permanent installations. The tops feature ergonomic side handles and dual-tilt stand receptacles for quick setup. Furthermore, LD Systems offers padded protective covers specifically designed for Stinger G3 models. The total system weight of 125.4 kg (276 lbs) distributes across four pieces for manageable load-in. Consequently, two-person teams can set up the complete PA equipment package in under 15 minutes.

Two Stinger 12A G3 active full-range speakers
Two Stinger SUB 18A G3 active subwoofers
Power cables for all four units
User manuals and documentation

Key features

Combined 2600W RMS Power: Two 500W tops plus two 800W subwoofers deliver massive sound pressure levels
266 dB Combined SPL: Professional output handles indoor venues up to 300 people and outdoor events for 250 guests
BEM-Optimized Waveguides: Controlled 90° x 50° dispersion minimizes reflections for clear, consistent coverage
DynX DSP Technology: Proprietary signal processing ensures distortion-free performance at all volume levels
Extended Low Frequency: Subwoofers reach down to 35 Hz while tops extend to 58 Hz for full-range coverage
Cardioid Array Presets: Built-in DSP modes enable directional bass control with dual subwoofer configurations
Birch Plywood Construction: 15mm tops and 18mm subwoofers with polyurea coating ensure exceptional durability
Multiple Mounting Options: Pole mount, flown rigging points, and monitor angles adapt to any application
Portable Design: Total system weight 125.4 kg (276 lbs) with ergonomic handles for easy transportation
German Engineering: LD Systems by Adam Hall Group brings over 20 years of professional audio expertise

Tech Specs

SYSTEM TOTALS:
Combined Power Output: 2600W RMS / 5200W Peak
Combined Maximum SPL: 266 dB (peak)
Total System Weight: 125.4 kg (276 lbs)
Coverage Capacity: 300-500 people (depending on venue)

STINGER 12A G3 (Quantity: 2):
Power: 500W RMS / 1000W Peak per unit
Max SPL: 131 dB peak
Frequency Response: 58 Hz – 20 kHz
Coverage Pattern: 90° H x 50° V
Woofer: 12″ custom design with 2.5″ voice coil
HF Driver: 1″ BMS compression driver with BEM-optimized horn
Amplifier: Class-D with DynX DSP
Connections: 2x combo XLR/Jack inputs, 1x XLR output
Dimensions (H x W x D): 627 x 390 x 377 mm (24.7″ x 15.4″ x 14.8″)
Weight: 20.1 kg (44.3 lbs) per unit
Cabinet: 15mm birch plywood with polyurea coating

STINGER SUB 18A G3 (Quantity: 2):
Power: 800W RMS / 1600W Peak per unit
Max SPL: 135 dB peak
Frequency Response: 35 Hz – 200 Hz
Woofer: 18″ custom design with 4″ voice coil
Amplifier: Class-D with DynX DSP
DSP Presets: 80 Hz, 100 Hz, 120 Hz low-pass filters plus cardioid array modes
Connections: 2x combo XLR/Jack inputs, 2x XLR outputs
Dimensions (H x W x D): 547 x 677 x 740 mm (21.5″ x 26.7″ x 29.1″)
Weight: 42.6 kg (94 lbs) per unit
Cabinet: 18mm birch plywood with polyurea coating
Orientation: Horizontal or vertical placement

FAQ

Q: How many people can this PA system package cover?
A: This system handles 300-500 people indoors and 200-250 people outdoors, depending on venue acoustics and music style.
Q: Can I use just one subwoofer with both tops?
A: Yes, however, using both subwoofers provides better bass coverage and enables cardioid array configurations for directional bass control.
Q: What cables do I need to connect this sound system bundle?
A: You need XLR cables to connect from your mixer to the speakers. The subwoofers can daisy-chain signal to the tops.
Q: Are speaker stands and poles included with this professional audio system?
A: Speaker stands and distance poles are sold separately. The tops accept standard 35mm poles with M20 threading.
Q: How long is the manufacturer warranty on LD Systems products?
A: LD Systems provides a 2-year manufacturer warranty. Check with your retailer for extended warranty options.
Q: Can these speakers work as floor monitors?

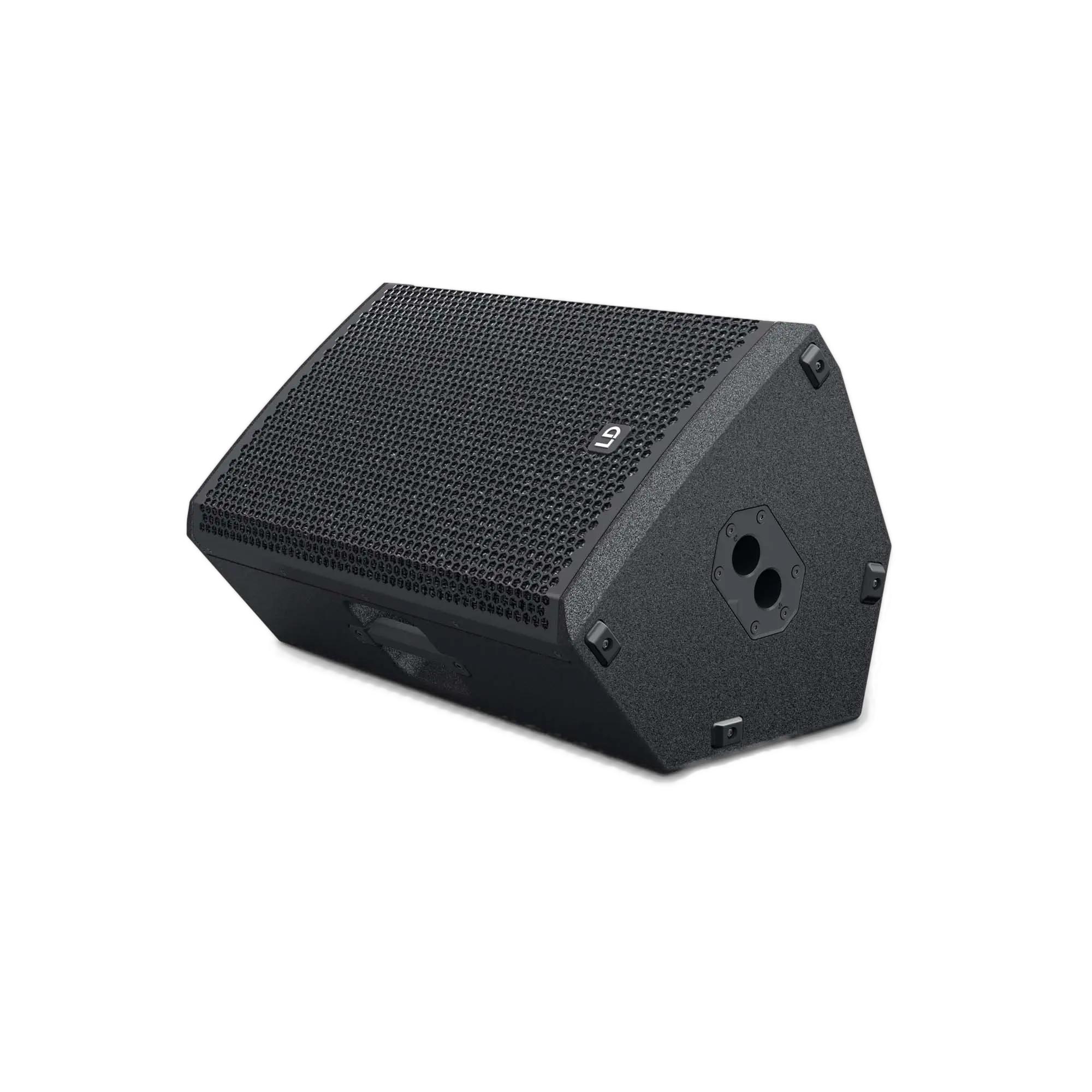

A: Yes, the Stinger 12A G3 tops feature a 54° monitor angle and work excellently as stage monitors.
Q: What’s the difference between cardioid and standard subwoofer modes?
A: Cardioid mode directs bass forward while reducing rear output, minimizing stage wash and improving clarity for performers.
Q: Will this PA equipment package work for outdoor church services?
A: Absolutely. The weather-resistant polyurea coating and powerful output make this ideal for outdoor worship services and events.
Q: How do I set the crossover frequency between tops and subs?
A: Use the subwoofer’s built-in DSP presets (80, 100, or 120 Hz) to match your tops. Start with 100 Hz for best results.
Q: Can I add more speakers to this system later?
A: Yes, this professional sound system scales easily. Add more tops for wider coverage or additional subwoofers for more bass output.
