Allen & Heath SQ-5 Rackmount Kit (SQ-5-RK19)
Convert your SQ-5 digital mixer into a road-ready, 19″ rack-mounted unit with the official Allen & Heath SQ-5 Rackmount Kit. Designed and manufactured to Allen & Heath specifications, this kit lets you secure the SQ-5 in a standard equipment rack or flight case while keeping front-panel access and ventilation exactly as intended.
Key features:
- Official rackmount kit for the Allen & Heath SQ-5 digital mixer (part no. SQ-5-RK19).
- Fits a standard 19″ rack and occupies 12U (21″) of vertical rack space.
- Includes precision rack ears and mounting hardware for secure installation and safe transport.
- Engineered to maintain proper clearance — the SQ-5 sits above the rack rails to preserve airflow and service access.

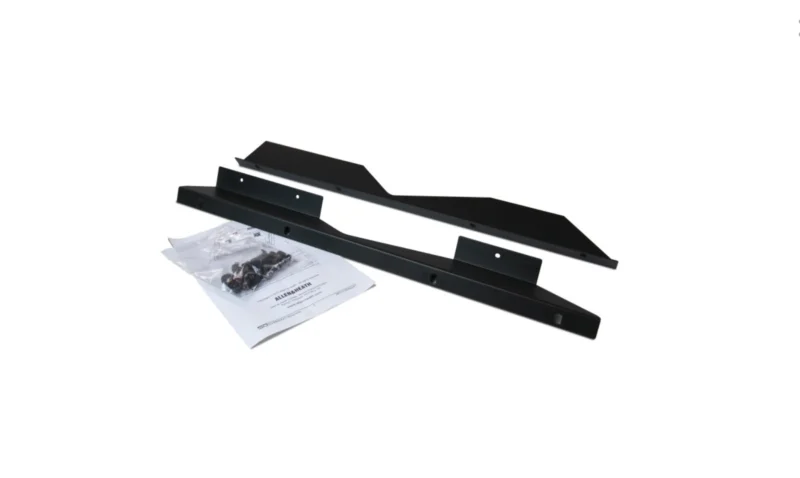

What’s in the box:
- Two custom rack ears (left & right)
- Mounting screws and hardware
- Installation/fitment notes
Dimensions & fitment (for planning):
- Approximate rack ear size: 53.0 mm × 532.6 mm × 50.1 mm.
- Required rack depth: the installed unit occupies 12U (≈21″) of vertical space; the SQ-5 sits approximately 140 mm (≈5.5″) above the rack rails.
Compatibility: Designed specifically for the Allen & Heath SQ-5 digital mixer (mixer sold separately).
Whether you’re building a portable FOH rack or creating a compact fixed installation, the SQ-5 Rackmount Kit provides a neat, secure and manufacturer-approved solution for integrating your SQ-5 into 19″ rack systems.
